REPOWER
BATTERY CHARGER
WITH AUTOMATIC DESULPHATION
THE SULPHATION
In the discharge phase in a lead battery, a chemical reaction of lead sulfate production (PbSO4) occurs, resulting in an increase in the density of the sulfuric acid electrolyte solution (H2SO4). Lead sulfate being chemically a "salt", has a tendency to "crystallize" or to compact into a solid structure of high resistance that settles on the electrodes in an almost irreversible way.
In all lead batteries, after already a year of life, especially if subjected to prolonged discharges, long periods of downtime or for use at excessively low or excessively high temperatures, the sulfate process begins to block the passage of current between the plates and then between the elements of the battery, until it gets in this way to completely inhibit both the charge and the discharge of the battery.
CARICABATTERIE
+ DESOLFATATORE
IN UN UNICO STRUMENTO
For Genitron REPOWER is the most promising and versatile technology in the market:
http://www.genitronsviluppo.com/2016/12/12/greentronics-sostenibilita-energetica-repower/
For GSE (Gestore Servizi Energetici) REPOWER it is the most interesting and performing technology in the field of photovoltaic energy storage:
www.greentronics.it/REPOWER-RecensioneGSE.pdf
Our REPOWER technology is available in 2 versions:
- Powered by 230V mains (GRD model)
- Powered by photovoltaic panel at 12V o 24V (PVG model)

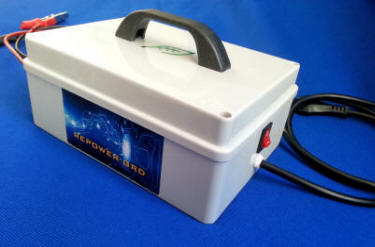

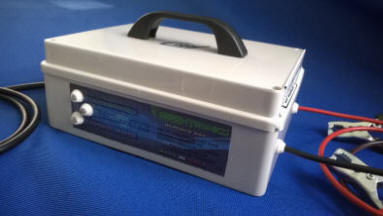

REPOWER GRD
230V electric grid-powered charger at
high-power (5A) with automatic desulphator
for 12V lead batteries capable
of fast charging, but, at the same time, avoiding battery stress due to
high current recharges, that cause the evaporation of the inner
electrolyte.
In
the case of sulfated battery, the duration of the recovery process and
charging depends on the condition of the battery and the extent of the
sulfation.
Extremely versatile and easy to install thanks to:
- 230V power plug cable
- Output cables with red clamp (positive pole) and black clamp(negative pole) to connect to any type of battery
- Ergonomic handle for easy movement and positioning of the device
- Rocker
switch and 3 ultrabright LEDs for signaling anomalies / charge phases /
desulphation of the battery
TECHNICAL FEATURES
- Input voltage range : 176-264Vac
- Maximum power: 75W
- Conversion efficiency : 80%
- Input Frequency range : 47-63Hz
- 7 stages smart charger
- Overload electronic protection
- Short circuit electronic protection
- Overvoltage electronic protection
- Ultrabright Led panel
- Maximum charging current: 5A
- Protection degree: IP 56 + conformal coating on electronic board to prevent oxidation
- Capacity range of the connectable batteries : 6Ah - 120Ah
- Compatible battery types: Lead, Lead gel, AGM
- Dimensions:
140x195x100mm176-264Vac
COD. EAN: 8319120320021

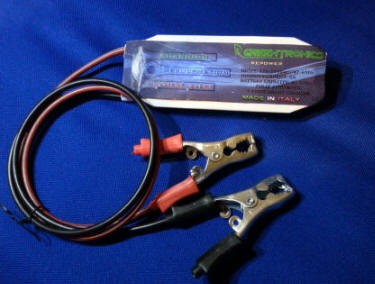

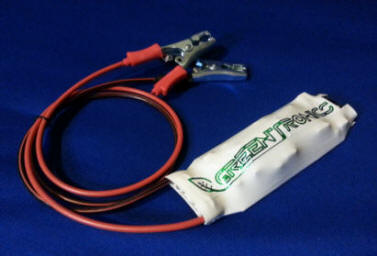

REPOWER PVG
High-efficiency
charging regulator with automatic desulphator for 12V or 24V lead
batteries, powered by photovoltaic panel for the realization of
photovoltaic kits or modular storage systems in islanding (OFF GRID)
for energy autonomy with fast payback time: about 3 years.
In the case of sulfate battery, the duration of the recovery process and charging also depends on the condition of the battery and the extent of the sulfate.
The
duration of the charging phase depends on the power of the panel
connected to the charger. On a medium-capacity car battery, the
charging time varies from half a day with a panel from 120Wp to about a
week with a 10W panel (available separately).
- Wide power range of input pluginable photovoltaic panel: 10W-315W
- Output terminal block for connection to any type of 12V hermetic battery (like those of antitheft systems) or open vessel (such as cars), or GEL / AGM, etc.
- Panel input connection by screw terminal block
- 3
ultrabright LEDs for signaling anomalies / charge phases / desulphation
of the battery
TECHNICAL FEATURES
- Photovoltaic panel voltage type: 12V or 24V
- Maximum input voltage: 40V DC
- Panel Maximum power: 315W
- Battery Voltage: 12V or 24V
- Conversion efficiency: 95%
- 7 steps charge profile
- Electronic overload protection
- Electronic short-circuit protection
- Electronic protection against lightning surges
- Ultrabright Led panel
- Maximum charging current : 10A
- Degree of protection: IP 44 and conformal coating on circuit board to prevent oxidation
- Capacity range of chargeable batteries: 6Ah - 120Ah
- Compatible battery types: Lead, Lead gel, AGM
- Dimensions: 150x50x30mm
COD. EAN: 8319120320038
The
product is designed to be used only for the restoration and charging of
lead batteries, not to be used to charge/restore other types of
batteries or for applications other than those indicated in the manual.
The manufacturer denies any liability for damage to persons or
properties due to improper use of the device or otherwise different
from the one specified.
The use of our automatic desulphation charger is highly
sustainable and
environmentally friendly, as it allows the restoration and reuse of
exhausted batteries containing lead, normally intended to be disposed
of as special waste.
PURCHASE OF REPOWER
UNBEATABLE PRICE:
REPOWER GRD = 104,10€ + IVA = 127€
REPOWER PVG = 78€ + IVA = 95,16€
10W POLYCRYSTALLINE PHOTOVOLTAIC PANEL
= 20,50€+iva = 25€
YOU CAN PAY BY BANK TRANSFER OR WITH CREDIT CARD -
PAYPAL
SHIPPING
ALL OVER THE WORLD
To order it and/or ask for the price of the shipment to your country:
last name, first name, address, tax code (or VAT number) and delivery phone number for the forwarder!
MONEY-BACK GUARANTEE:
If you are not satisfied with our REPOWER devices you can request a refund of the full amount spent on the purchase by shipping back the product to us in its original packaging within 15 days from the purchase at our headquarters address.
E-mail: tecnico@greentronics.it
Info Tel. +39-3289251008
VAT NO. IT06979131213
